Overhead sectional doors

ASSA ABLOY OH1042P

ASSA ABLOY OH1042P

ASSA ABLOY OH1042F

ASSA ABLOY OH1042S

Attractive and easy to operate, glazed and panel overhead sectional doors are a durable, tight-sealing fit for industrial use. Sliding up and under the ceiling, they maximize space around the door...

Brand
Crawford

In 2011 Cardo, the parent company of both Crawford and Megadoor was acquired by ASSA ABLOY Group and both are now product brands of ASSA ABLOY Entrance Systems.

View brand

The universal overhead sectional door ASSA ABLOYOH1042-AP slides up under the roof when opened, thereby giving free space in and around the door opening.

We offer a complete range of overhead sectional doors, both insulated sandwich panel doors and glazed frame doors.

Each part of the universal overhead sectional doors are built to the highest standards. The combination of wind-resistant reinforced panels and a class 3 certification for water tightness, wind load and air permeability, give you a door that looks better and performs longer. These small innovations make a big difference to the buildings they protect.

Choosing from five standard outdoor colors, or your own factory-painted color for both the inside and outside. Available in different sizes, panels, window configurations, locks, handles and pass doors, the ASSA ABLOYoverhead sectional door is perfectly suited to every kind of industrial need.

ASSA ABLOY OH1042P-AP

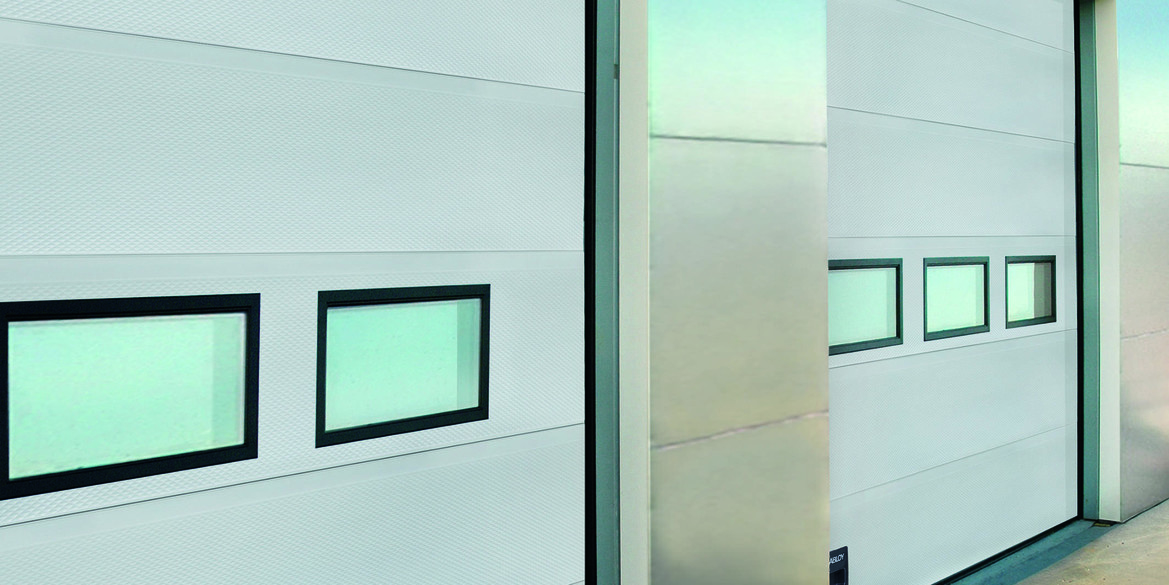

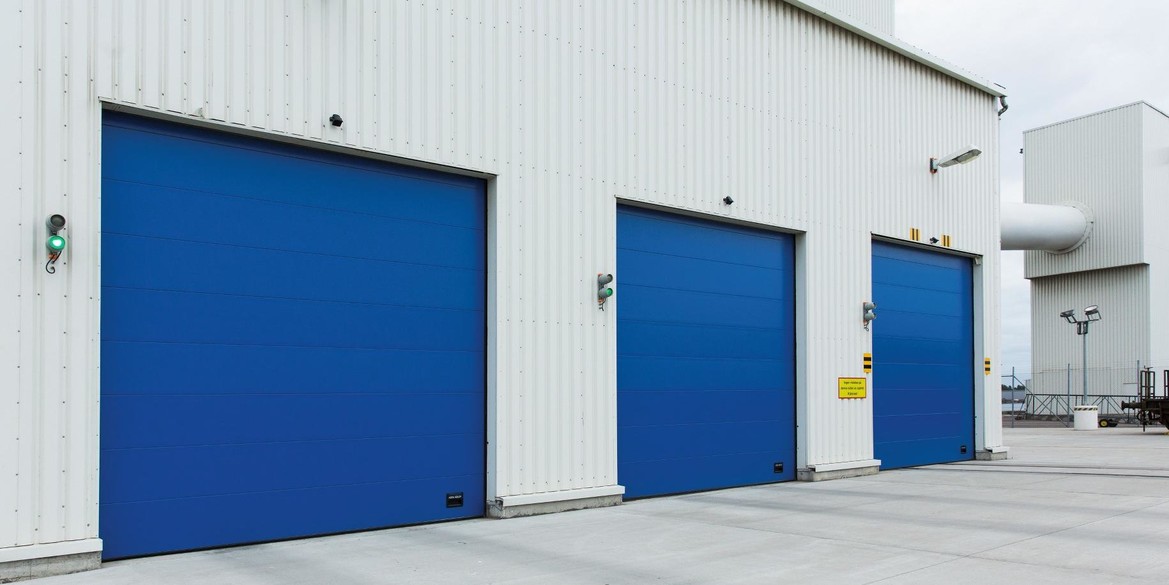

ASSA ABLOY OH1042P-AP overhead sectional doors is optimal for customers who need robust, well-insulated and space-saving doors in the outer walls of industrial premises.

ASSA ABLOY OH1042F-AP

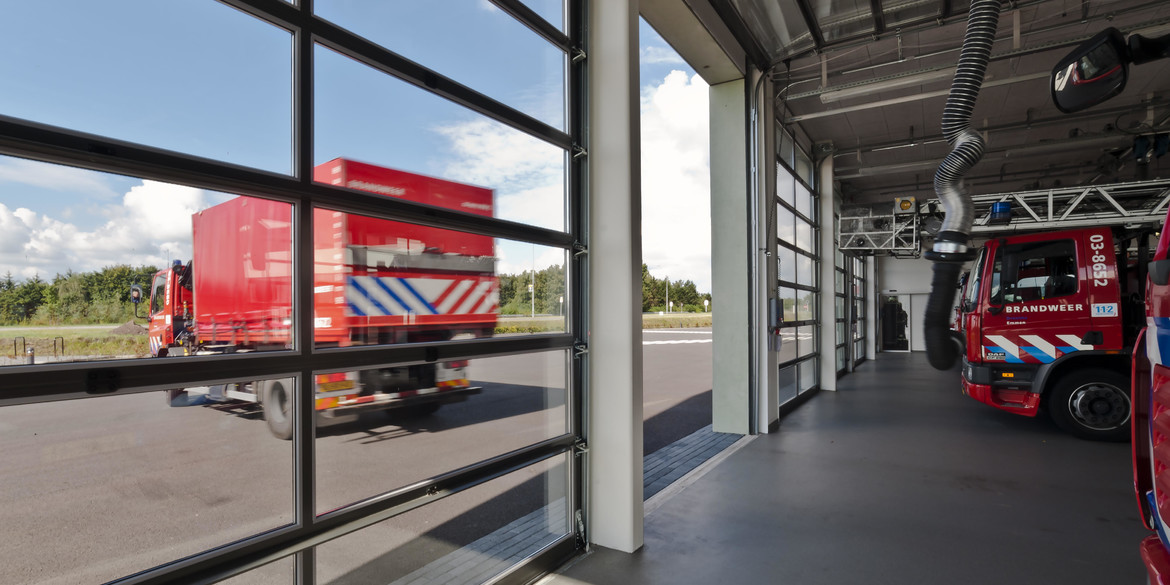

ASSA ABLOY OH1042F-AP overhead sectional doors is a glazed door, designed to be used when there is a need for light, exposure, or vision.

ASSA ABLOY OH1042S*

ASSA ABLOY OH1042S overhead sectional doors have been designed with a modified control system and reinforced construction to increase speed and benefit your business. Speed improves your working environment, increases safety, reduces energy expenses and more. The ASSA ABLOY OH1042S is engineered to let your business be busy.

Imported products are marked with "*"

Technical Description

ASSA ABLOY OH1042P-AP

  • Standard size up to (WxH) [1]: 8000 x 6000 mm
  • Panel thickness: 42 mm
  • Windows/Pass-door/Access and Automation: Optional
  • Wind load, EN 12424 [2]: Class 3 W < 4250, Class 2 W > 4250
  • Thermal transmittance, EN 12428 [3]
  • Full panel (steel) door: 1,1W/(m2K)
  • Water penetration, EN 12425 [4]: Class 3
  • Air permeability, EN 12426 [4]: Class 3

[1 ]Other sizes on request

[2] Higher wind load classification on request

[3] Door size 4000 x 4000 mm

[4] With or without pass-door

ASSA ABLOYOH1042F-AP

  • Standard size up to (WxH) [1]: 7250 x 6050 mm
  • Frame thickness: 44 mm
  • Filling thickness: 27 mm
  • Bottom section thickness: 42 mm
  • Windows: Various options available
  • Pass-door: Optional
  • Access and Automation: Optional
  • Wind load, EN 12424 [2]: Class 3 W < 4250 x 4500, Class 2 W > 4250 x 4500
  • Thermal transmittance: EN 12428 [3]: 3.3 W/m2K
  • Water penetration: EN 12425 [4]: Class 3
  • Air permeability: EN 12426 [4]: Class 3

[1] Other sizes on request

[2] Higher wind load classification on request

[3] Door size 4000 x 4000 mm

[4] With or without pass-door

ASSA ABLOY OH1042S

  • Standard size up to (W x H) [1]: 5000 × 5000mm
  • Panel thickness: 42 mm
  • Opening speed:1.0m/s
  • Windows:optional
  • Pass-door:not possible
  • Wind load,EN 124242[2] :class 3,W < 4250 x 4500,2 级 W > 4250 x 4500
  • Thermal transmittance, Full panel steel door EN 12428[3]: 1.0 W/m2K
  • Water penetration, EN 12425[4]:class 3
  • Air permeability,EN 12426[4]: class 3

[1] Other sizes on request

[2] Higher wind load classification on request

[3] Door size 5000 x 5000 mm

[4] With or without pass-door

Brochure

OH1042P.pdf  (529.39kB)

OH1042S.pdf  (304.73kB)
