ASSA ABLOY DS6060A
ASSA ABLOY 6060A
ASSA ABLOY DS6060A
Efficient weather protection with high tear resistance.
Brand
Crawford
In 2011 Cardo, the parent company of both Crawford and Megadoor was acquired by ASSA ABLOY Group and both are now product brands of ASSA ABLOY Entrance Systems.

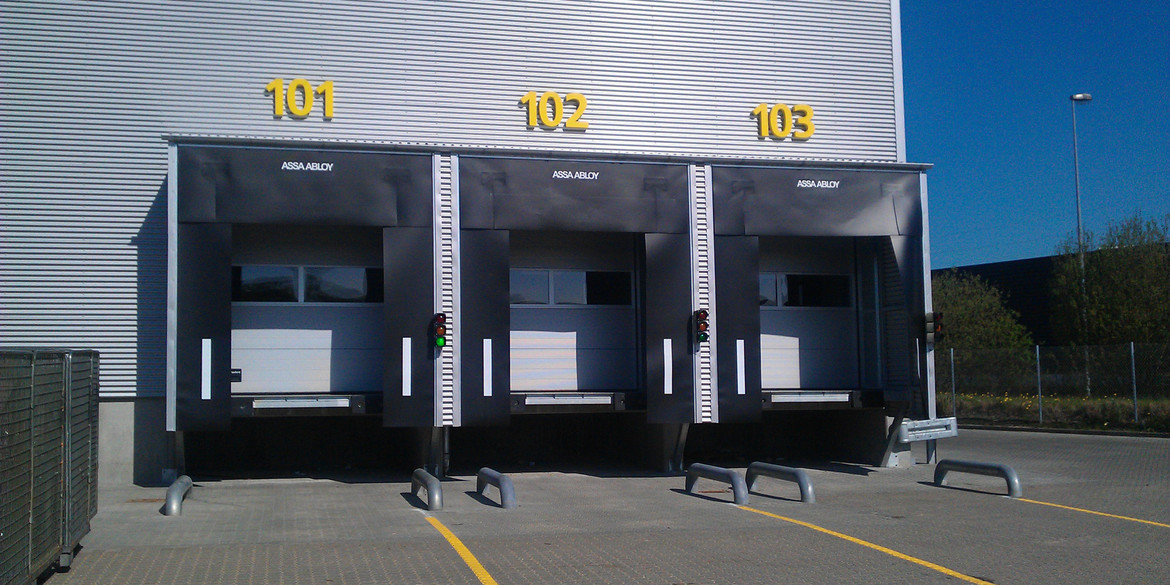

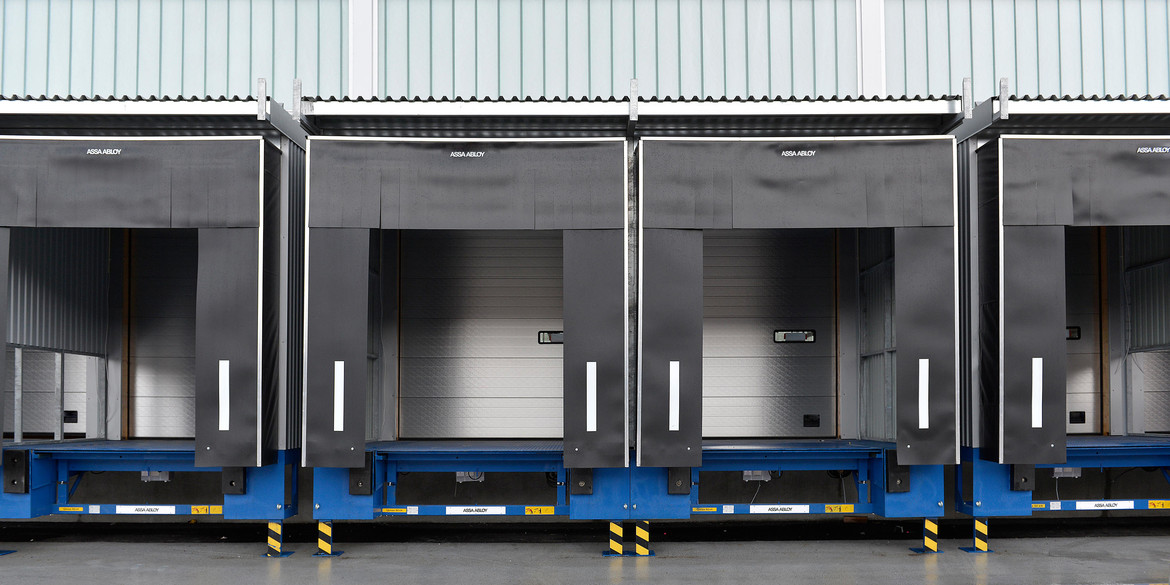

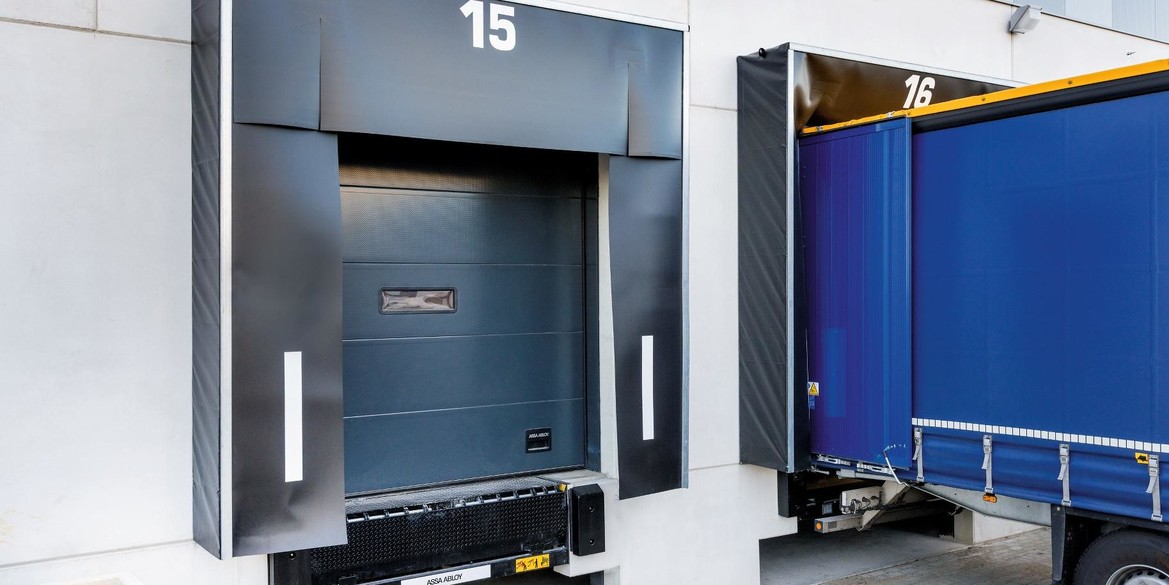

View brandMechanical curtain dock shelters provide weather protection during the loading and unloading process. Available in many sizes, they greatly improve working environment while protecting the goods. The curtain material has a very high wear-and-tear resistance and built-in-springs allow the shelter to follow vehicle movement without being damaged.
The front curtains are fixed to the front frames with steel balls. These hold the fabric in place inside the frame in a flexible way allowing movement during impact from trucks. As a result, the tear-resistance of the fabric is increased and breaking points are avoided.
All our mechanical curtain dock shelters can be equipped with a number of standard options for even better working conditions and less draught into the building.
ASSA ABLOY DS6060S curtain dock shelter steel*
The ASSA ABLOY DS6060S curtain dock shelter steel is the standard solution for improved working conditions and energy savings. The shelter is equipped with a steel frame.
ASSA ABLOY DS6060A curtain dock shelter aluminium
ASSA ABLOY DS6060A curtain dock shelter aluminium is the standard solution for improved working conditions and energy savings. It has a weight-reducing aluminium frame.
Imported products are marked with "*"
Technical Description
ASSA ABLOY DS6060A
- Normal height: 3200, 3400, 3600 mm
- Normal width: 3250, 3450 mm
- Normal depth: 600mm
- Top curtain: 1000, 1200 mm
- Side curtain: 600, 700 mm
- Curtain colour: black
- Parking guides:yellow
- Wall fixings: concrete, sandwich,light concrete, Loadhouse, cavity,insulated panel
- Top and side curtains: double layer high quality polyester
- Thickness: 3,0 mm
- Weight Approx.: 3400 g/m²
- Continuous roof cover: one layer high quality polyester
- Thickness: 0,5 mm
- Weight Approx.: 680 g/m²
- Flammability all curtains: DIN 75200
ASSA ABLOY DS6060S*
- Normal height: 3280, 3480, 3680 mm
- Normal width: 3250, 3450 mm
- Normal depth: 600, 900 mm
- Top curtain: 1000 mm
- Curtain colour: black
- Parking guides: white
- Wall fixings concrete, light concrete,Loadhouse, cavity,insulated panel
- Top and side curtains: double layer high qualitypolyester
- Thickness: 3,0 mm
- Weight Approx.: 3400 g/m²
- Continuous roof cover: one layer high quality polyester
- Thickness: 0,5 mm
- Weight Approx.: 680 g/m²
- Flammability all curtains: DIN 75200
