Safe, durable and fast operating cycle machine protection doors for automated processes and production lines.
Brand
Albany
In 2012, Albany was acquired by ASSA ABLOY Group and is now a product brand of ASSA ABLOY Entrance Systems.
View brandWhen safety, speed and process integration is the challenge, smart machine-protection doors are the solution. Fast speeds and short cycle times. Automated manufacturing and assembly requires advanced technology, processes and equipment. ASSA ABLOY Entrance Systems delivers high-performance, high-speed doors that are especially suited for such demanding conditions. With both pre-running and door-line photo cells, the safety switches are integrated into the side frames
ASSA ABLOY RP300

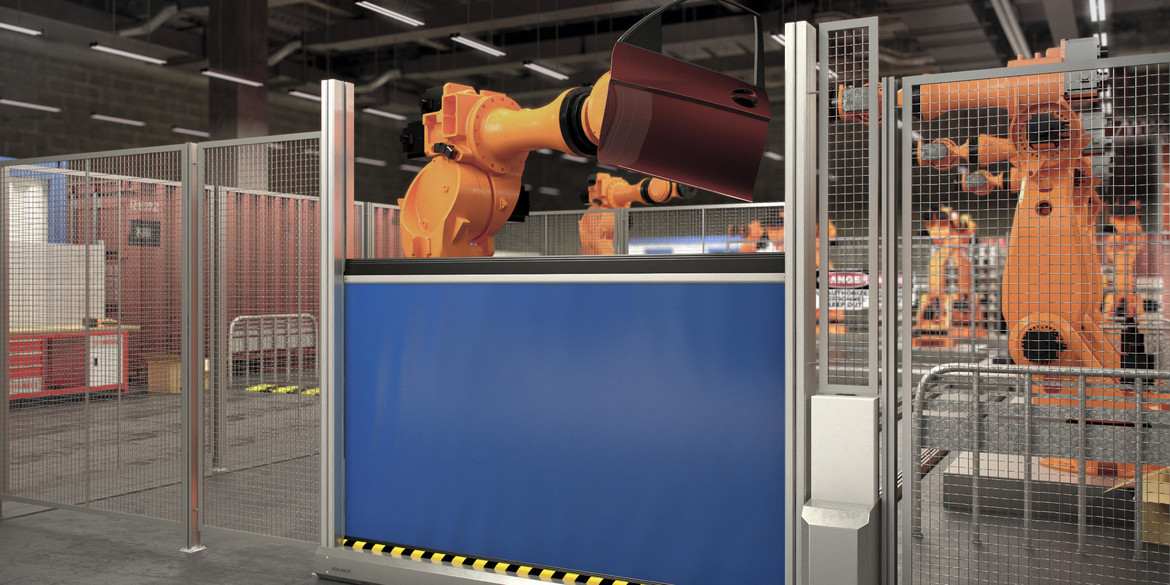

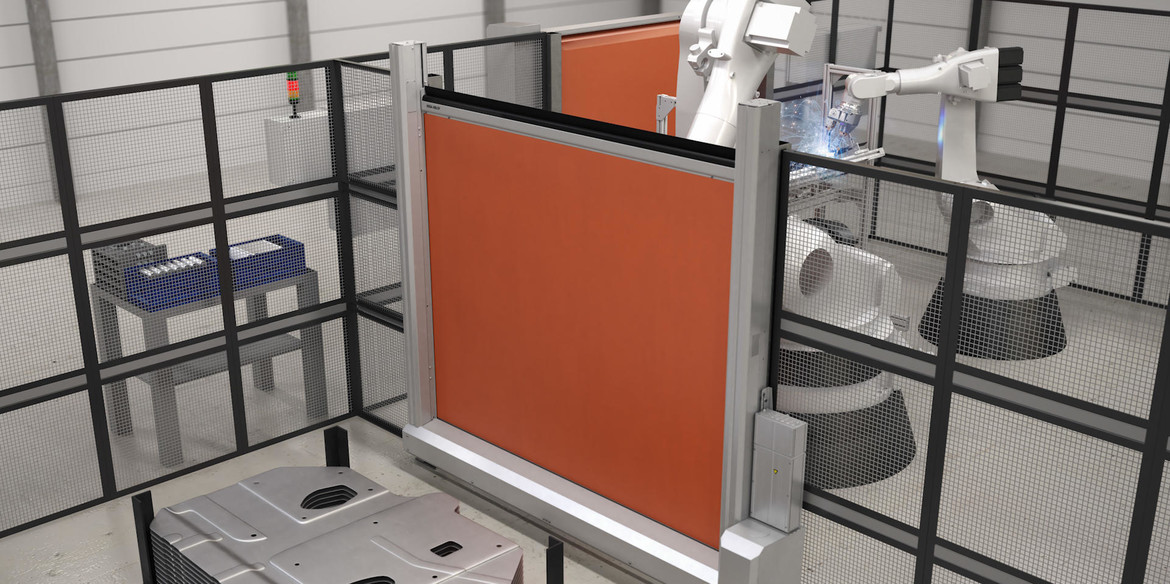

ASSA ABLOY RP300 machine protection doors are heavy-duty high-speed doors designed for automated processes and production lines. Built with a minimal number of parts these rugged machine-guarding doors are reliable, easy to install and require low maintenance. ASSA ABLOY RP 300 machine protection doors offer protection to staff working close to automated manufacturing processes. The safety concept of these roll-up doors allows a compact production setup, being installed at short distance from the automated machines. At the same time, fast opening- and closing-cycle times increase product flow and process productivity.
ASSA ABLOY RP2000*

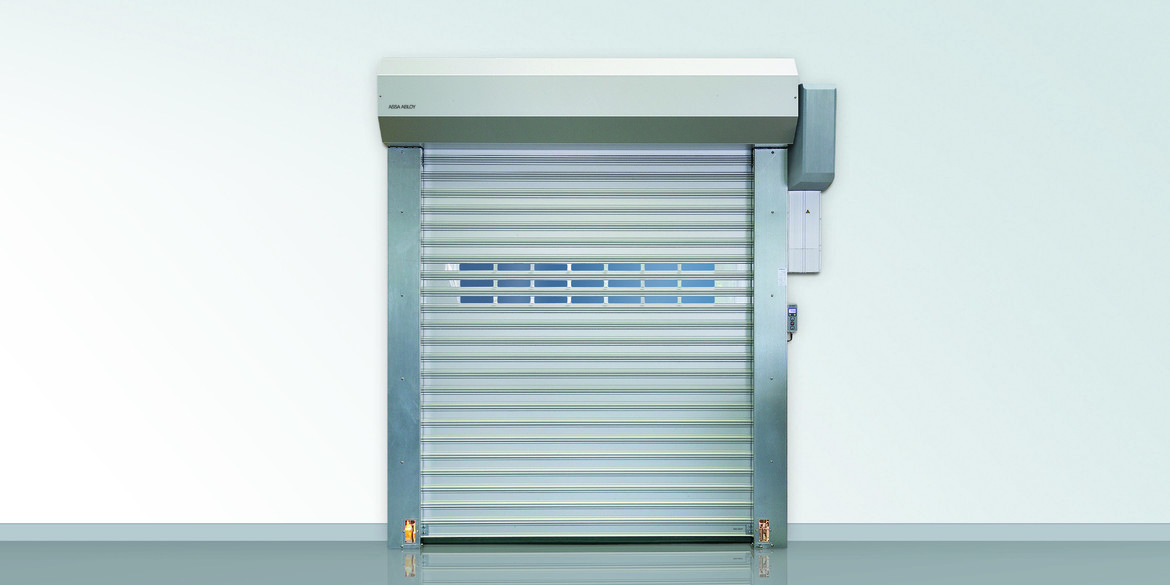

ASSA ABLOY RP2000 doors are high-speed machine protection doors with a rigid curtain made of aluminum slats that provides the utmost protection from automated machine activity. This door was specifically developed for robot and laser welding applications. The ASSA ABLOY RP2000 series features smart design elements that improve automation, ensure safety and help meeting high industry standards. The ASSA ABLOY RP2000 opens incredibly fast to ensure short cycle times – up to 5 door cycles per minute are possible. The rugged design stands up in harsh, industrial environments and provides process reliability after a high number of cycles.
Imported products are marked with "*"
Technical Description
ASSA ABLOY RP300
- Door dimension (mm) max. 4000×3500 mm
- Speed open/close: up to max. 2.4/1.8 m/s depending on control systems and specific sizes
- Short cycle times up to 5 cycles per minute is possible
- Door Curtain: Depending on application, various door curtains and colors are available, from partially transparent PVC curtains with colored reinforcement stripes to highly rigid durable material, protect against sparks. Optional anti-UV welding windows that conform to EN 1598 are also available
- Side frames are made of two aluminium profiles, integrated safety limit switches connect the door with the machine. Window areas allow easy monitoring of integrated safety limit switches
- Safety limit switches according to EN ISO 13849-1 and EN 62061
- Doors conform to EN ISO 12100 and EN 1088
- Control systems: Depending on the application 2 control systems which offer a broad spectrum of speeds, power supplies and options for safety devices. Door without a control system is possible. UL-Version as option
- Space saving extension box allows mounting of interface card or safety monitoring module for safety limit switches
- Safety features: Electrical safety contact edge and door line photocell, pre-running photocell as option
- The door is designed according to the Workplace Directive of the UVV regulations and the harmonized CE Guidelines including the EN 13241-1 and 2006/42/EG
- Flexible positioning of the gear motor can be mounted on the left or right side of the door. The motor can tilt in 45° increments for easy positioning and installation
- Self-Supporting: the door can be mounted directly to the floor with optional mounting brackets. Leveling screws allow the door to be leveled on uneven surfaces.
More information regarding specifications please refer to sales engineers from ASSA ABLOY Entrance Systems
ASSA ABLOY RP2000*
- Door dimension (mm) max. 4000×3500 mm
- Speed open/close: up to max. 2.0/1.2 m/s depending on specific door sizes
- Short cycle times up to 5 cycles per minute is possible
- The stable, rigid door curtain is made from anodized aluminum double walled slats preventing penetration from laser beams (Powder coating option is not available)
- Side frames are self-supporting, made of galvanized steel shoot sections and can be powder-coated in many RAL colors
- Safety limit switches according to EN ISO 13849-1 and EN 62061
- Doors conform to EN ISO 12100 and EN ISO 14119
- Control systems: ASSA ABLOY MCC vector control system
- Space saving extension box allows mounting of interface card or safety monitoring module for safety limit switches
- Safety features: Pre-running photocell, door line photocell and electrical safety contact edge as option
- The door is designed according to the Workplace Directive of the UVV regulations and the harmonized CE Guidelines including the EN 13241-1
More information regarding specifications please refer to sales engineers from ASSA ABLOY Entrance Systems
