Rigid exterior doors

ASSA ABLOY RR3000

ASSA ABLOY RR3000

ASSA ABLOY RR3000 ISO

Fast, safe, robust and functional with a modern design.

Brand
Albany

In 2012, Albany was acquired by ASSA ABLOY Group and is now a product brand of ASSA ABLOY Entrance Systems.

View brand

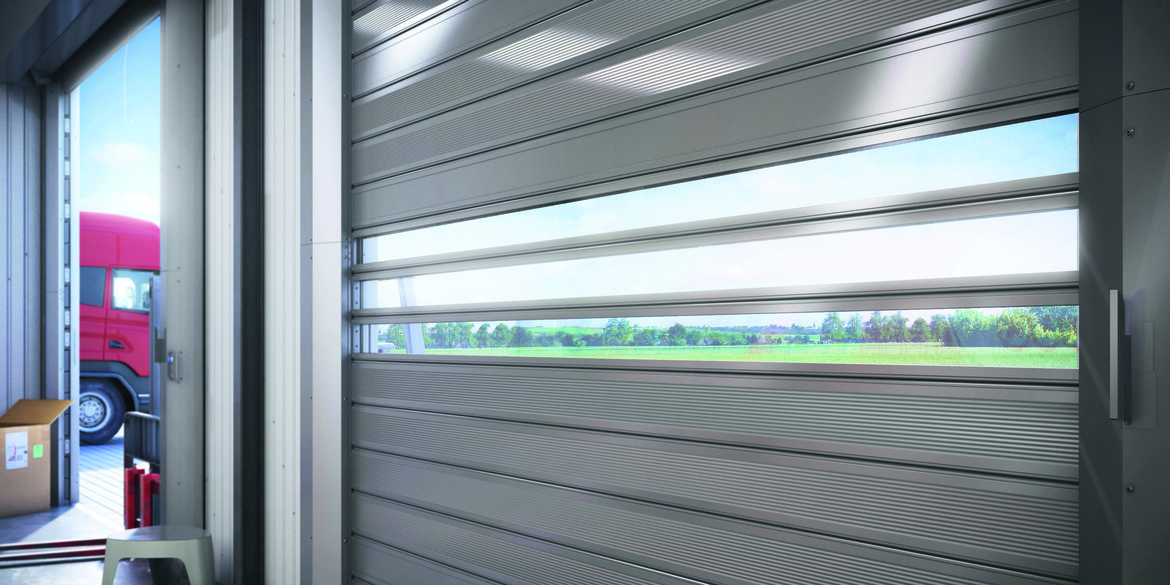

ASSA ABLOY RR3000 series combine the greatest functionality with modern design. Their outstanding engineering makes the doors extremely fast, safe, robust and guarantees an extremely long service life with low maintenance needs. The stylish modern design, achieved by using polished aluminium slats and large windows, ensures an attractive appearance and perfect integration into building facades. The ASSA ABLOY RR3000 series is available in various versions in addition to the standard version illustrated: The ASSA ABLOY RR3000 R for tight spaces, the ASSA ABLOY RR3000 Vision for very high transparency, the ASSA ABLOY RR3000 XXL for large openings, the ASSA ABLOY RR3000 Hurricane for critical wind resistance areas and the ASSA ABLOY RR3000 ISO for enhanced insulation.

ASSA ABLOY RR3000

The ASSA ABLOY RR3000 high speed doors with their nice aluminium curtain are perfect for industrial, commercial and high security applications where speed is important, looks are critical, traffic is frequent, and door safety concerns are paramount. This industrial door’s bold sleek design adds visual appeal to any architectural environment. The ASSA ABLOY RR3000 metal door construction makes it a security door that is perfect for exterior openings in general manufacturing, automotive dealerships, parking facilities and detention centers - just to name a few applications. It's simple, patented design ensures hundreds of thousands of maintenance-free cycles.

ASSA ABLOY RR3000 R

The ASSA ABLOY RR3000 R high speed door is perfect for use in applications where limited-space installation situations prevail, for example, in underground garages or manufacturing and logistic buildings where building obstructions prevent fitting other door models. The door has a minimum lintel space and the motor is built into the side frame. Equipped with perforated sheet slats, optimized air circulation can be provided.

ASSA ABLOY RR3000 ISO*

The ASSA ABLOY RR3000 ISO combines the superior thermal performance of a sectional door with the fast speeds and operational efficiency of a high performance door. This next generation, hybrid solution from ASSA ABLOY Entrance Systems opens and closes with maximum speed and minimum energy loss. ASSA ABLOY RR3000 ISO is the perfect choice for distribution centers, warehouses and manufacturing facilities. For distributors, logistic centers, public facility warehouses, general manufactures and much more – the ASSA ABLOY RR3000 ISO can be suited for highly specific and complex business requirements. The 50 mm thick thermal insulated door panel keeps indoor conditions stable and outdoor weather where it belongs. Improved sealing around the perimeter of the door limits air leakage and helps support an increased U-Value. The ASSA ABLOY RR3000 ISO can optimize the energy-performance of any building and help you meet your sustainability goals. Plus, it’s attractive, modern design can enhance a building’s facade.

Imported products are marked with "*"

Technical Description

ASSA ABLOY RR3000 / R

  • Maximum size, RR3000 is up to 5000×5000 mm while RR3000R can be up to 6000×3000 mm
  • Speed open/close: up to max. 2.2/0.7 m/s depending on specific door sizes
  • Wind Resistance Class 3-4 (EN 12424) depending on specific door sizes
  • Door Curtain: anodized double-walled aluminum lamellas, transparent windows are optional, coloured profiles in RAL as option, perforated sheet slats as option
  • The side frames are manufactured from galvanized steel and can optionally be powder-coated in wide range of RAL colours
  • Drive systems: ASSA ABLOY MCC standard, variable frequency drive with soft start / soft stop and absolute encoder
  • Safety: Pre-running photocell and door line photocell, electrical safety contact edge as option
  • Manual egress by pulling down the lever to open the door quickly in case of power failure
  • The door is designed according to the Workplace Directive of the UVV regulations and the harmonized CE Guidelines including the EN 13241-1.
  • As an exterior or interior door also suitable as a laser protection door

    More information regarding specifications please refer to sales engineers from ASSA ABLOY Entrance Systems

ASSA ABLOY RR3000 ISO*

  • Maximum size: 7000×6000 mm
  • Speed open/close: up to max. 2.1/0.7 m/s depending on specific door sizes
  • Wind Resistance up to Class 3 (EN 12424) depending on specific door sizes
  • Heat transfer coefficient door blade 1.4 W/m²K, complete door min 1,5 W/m²K (depending on door size and specification)
  • Temperature range: -20°C to +40°C (mounting side)
  • Door Curtain: insulated sandwiched slats (50×200 mm) with thermally separated metal sheet trays, RAL 9006, painting in RAL colours as option, window slats optional
  • Control systems: ASSA ABLOY MCC standard, variable frequency drive with soft start / soft stop
  • Safety features: Light curtain built in side frames as standard
  • Manual egress by pulling down the lever to open the door quickly in case of power failure
  • The door is designed according to the Workplace Directive of the UVV regulations and the harmonized CE Guidelines including the EN 13241-1.

    More information regarding specifications please refer to sales engineers from ASSA ABLOY Entrance Systems
