ASSA ABLOY RD200-3
ASSA ABLOY RD200-3
ASSA ABLOY RD200-4
The compact revolving doors create attractive entrances that combine the climate-control advantages of a revolving door with the security and convenience of an automatic door.
Brand
Besam
Besam was acquired by ASSA ABLOY in 2002 and is now a product brand of ASSA ABLOY Entrance Systems.
View brandASSA ABLOY RD200-3 and RD200-4

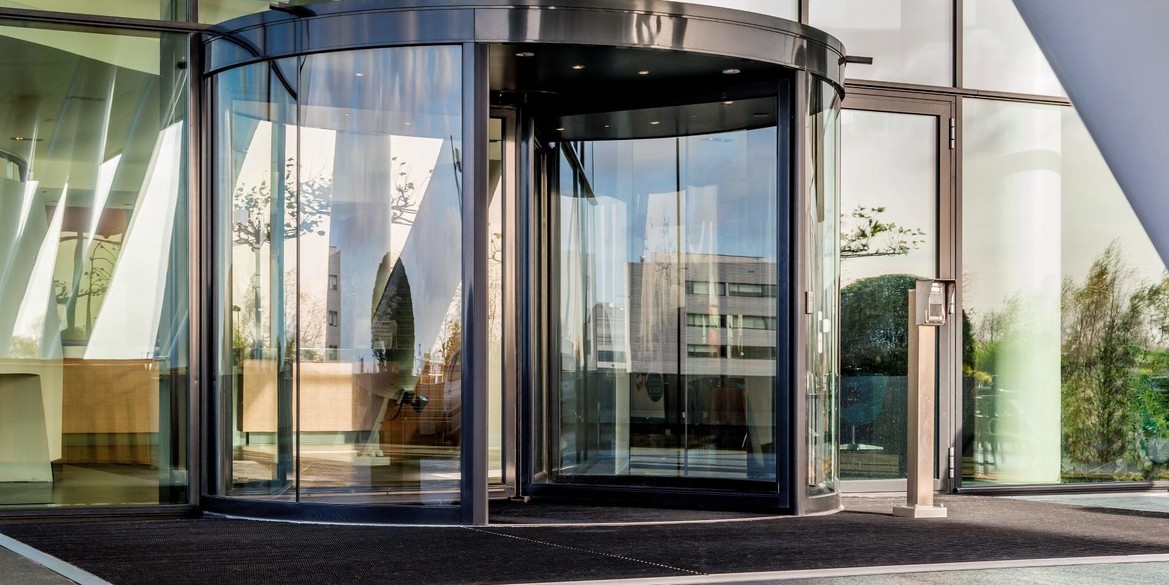

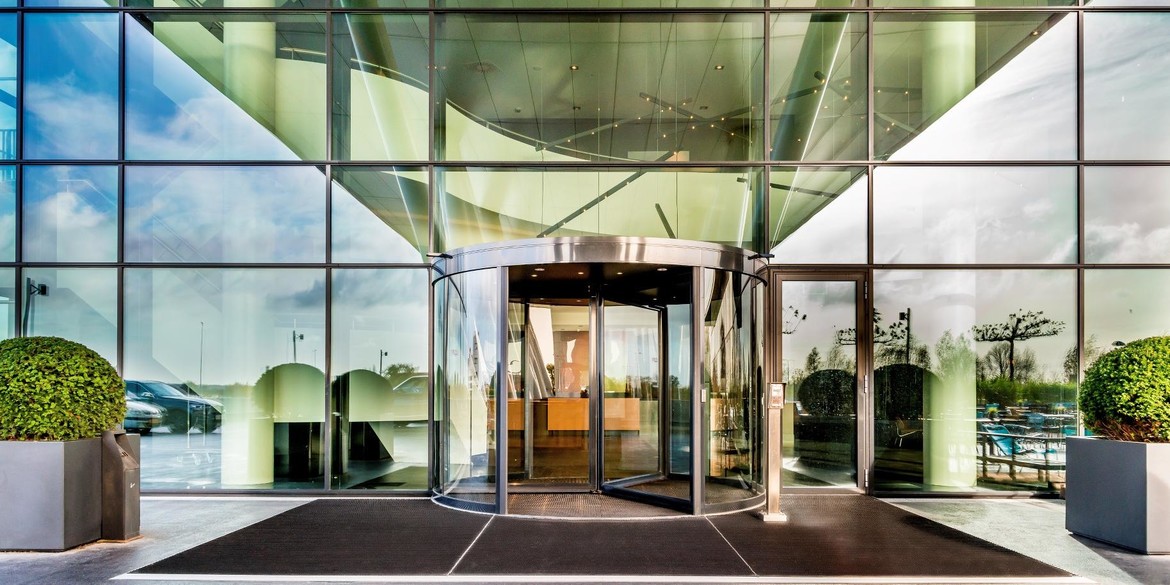

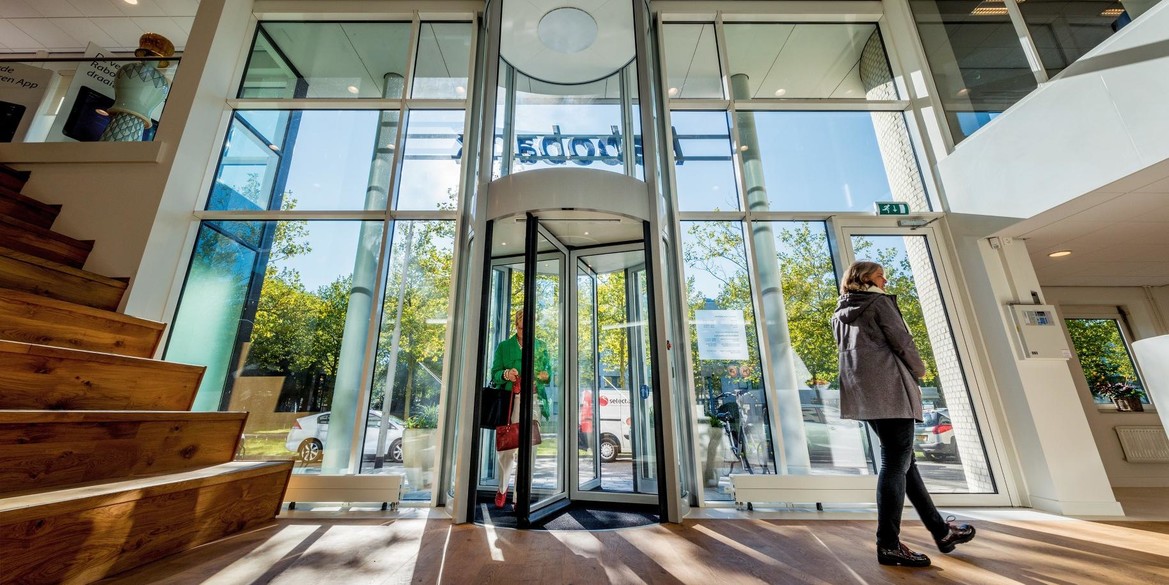

The ASSA ABLOY RD200-3 and RD200-4 revolving doors create attractive entrances that combine the climate-control advantages of a revolving door with the security and convenience of an automatic door. By providing complete separation of the indoor and outdoor environments, an ASSA ABLOY Entrance Systems compact revolving door can help reduce noise as well as heating and/or cooling costs. Both models are available in a variety of sizes to handle a range of passage needs, from travellers with luggage to moderate pedestrian-only traffic.
These revolving doors can be ordered in several different configurations that can be combined to match virtually any building, and are designed to be placed directly on the finished floor surface with no special foundations required.
Safety compliance
ASSA ABLOY RD200-3 and RD200-4 are fully compliant with EN 16005 safety standard.
Technical Description
ASSA ABLOY RD200-3 and RD200-4
- Power supply: 100-240 V, 50 Hz,mains fuse max 10 A
- Power consumption: 200 W /30 W resting
- Anodizing, clear or bronze
- Lighting LED: 30 W /60 W
- Internal height non-standard (2100 - 2600 mm)
- Fascia height non-standard (200-1250 mm)
- Powder-coated finish (RAL colours)
- Stainless steel cladding
Environmental Declaration
Drawings
