The large ASSA ABLOY RD3L three-wing revolving door for busy entrances
Brand
Besam
Besam was acquired by ASSA ABLOY in 2002 and is now a product brand of ASSA ABLOY Entrance Systems.
View brandASSA ABLOY RD3L

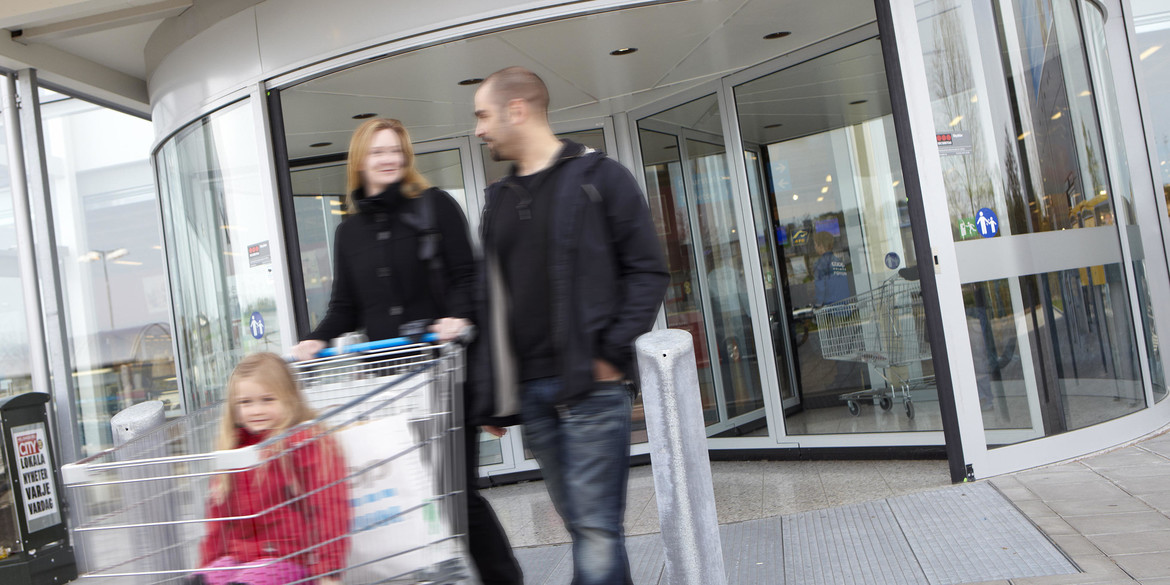

The ASSA ABLOY RD3L creates a spacious and welcoming entrance that can accommodate shopping trolleys, luggage carts and wheelchairs with ease. The full rotating ceiling ensures even lighting and eliminates brush marks, while hidden sensors allow for an uncluttered presentation and clean lines throughout.
The ASSA ABLOY RD3L’s patented drive mechanism is located in the periphery of the drum, reducing stress on the drive itself and resulting in lower maintenance costs. An optional night-closing door provides an elegant solution for optimum security. In emergency situations, the door wings are released immediately and then folded to facilitate escape.
The ASSA ABLOY RD3L is designed for placement directly on the finished floor surface and is delivered in a counter-clockwise rotation as standard.
Safety compliance
The ASSA ABLOY RD3L complies with: Machinery Directive (2006/42/EC), Low Voltage Directive (2006/95/EC), Electromagnetic Compatibility Directive (2004/108/EC) and requirements according to DIN 18650, EN 16005.
Technical Description
ASSA ABLOY RD3L
- Power supply: 100-240 V, 50Hz, mains fuse max 10 A
- Power consumption: 400 W /30 W resting
- Lighting LED: 75 W
- Ambient temperature: -20 to +50°C
- Anodizing
- Internal height non-standard (2000 to 2600 mm)
- Fascia height non-standard (340 to 1250 mm)
- Powder-coated finish (RAL colours)
- Stainless steel cladding
BIM Object
Environmental Declaration
