ASSA ABLOY DL6030C
Allows for efficient handling of vehicles of all sizes.
Brand
Crawford
In 2011 Cardo, the parent company of both Crawford and Megadoor was acquired by ASSA ABLOY Group and both are now product brands of ASSA ABLOY Entrance Systems.
View brandThe small- and large-vehicle combidock eliminates the need for different ramp heights and thereby reduces building costs. With a simple turn of a switch, it can handle vehicles of all sizes. A special safety control system ensures that the leveler automatically follows the vertical movements of the vehicle bed. Should the bed move horizontally, the same automatic system keeps the lip against the bed, facilitating safe and smooth passages.
The innovative and unique ASSA ABLOY 950 series docking control system offers perfect control of the dock leveler, dock shelter and door, all in one control unit. A few self-explaining buttons make the system easy to operate. Separate steering units or complex wiring are no longer needed.
ASSA ABLOY DL6030C combidock*

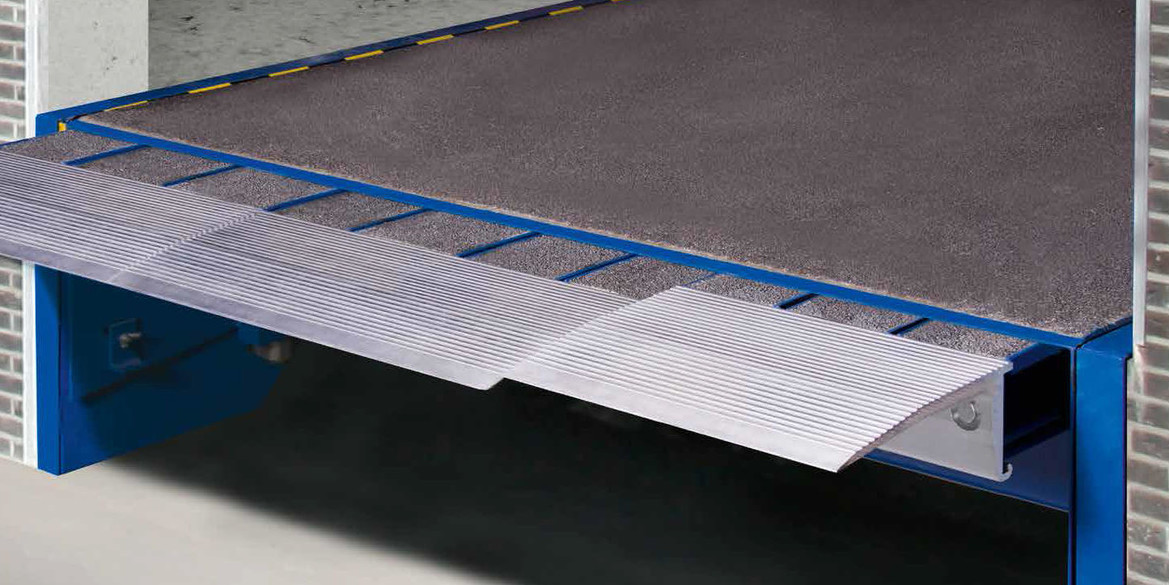

ASSA ABLOY DL6030C combidock has a telescopic lip in high-stability aluminium alloy. Since the lip is extremely flat, it allows for smoother passages between leveller and truck bed. This means both ergonomic and economical advantages due to reduced chock loads for people and less wear-and-tear on the handling equipment.
Imported products are marked with "*"
Technical Description
ASSA ABLOY DL6030C*
- Nominal length: 3000, 3500, 4000 mm
- Nominal width: 2000 mm
- Load capacity: lorries 60 kN (6 tonnes) vans 20 kN (2 tonnes)
- Vertical working range: Rise above dock up to 590 mm, Fall below dock down to 650 mm
- Platform tear-plate thickness: 8/10 mm
- Max. point load levller platform: 6,5 N / mm² (8 mm tear plate)
- Lip material & length: aluminium, 500 mm
- Control unit protection class: IP 54
- Nominal voltage: 400V 3-phase
- Nominal motor power: 1,5 kW
- Control unit: standard truck / city van mode Impulse auto button. Optional with door operation
- European standard: EN 1398 Dock levelers
BIM Object
Drawings
Product_drawing_ASSA_ABLOY_DL6030C_type_T_with_tail_lift.dwg (.dwg, 241 kB).dwg (241.17kB)
Product_drawing_ASSA_ABLOY_DL6030C_type_T_without_tail_lift.dwg (.dwg, 191 kB).dwg (191.17kB)
Product_drawing_ASSA_ABLOY_DL6030C_type_W_with_tail_lift.dwg (.dwg, 229 kB).dwg (228.86kB)
Product_drawing_ASSA_ABLOY_DL6030C_type_W_without_tail_lift.dwg (.dwg, 179 kB).dwg (179.18kB)
