High-capacity revolving doors for high-traffic entrances
Brand
Besam
Besam was acquired by ASSA ABLOY in 2002 and is now a product brand of ASSA ABLOY Entrance Systems.
View brandASSA ABLOY UniTurn

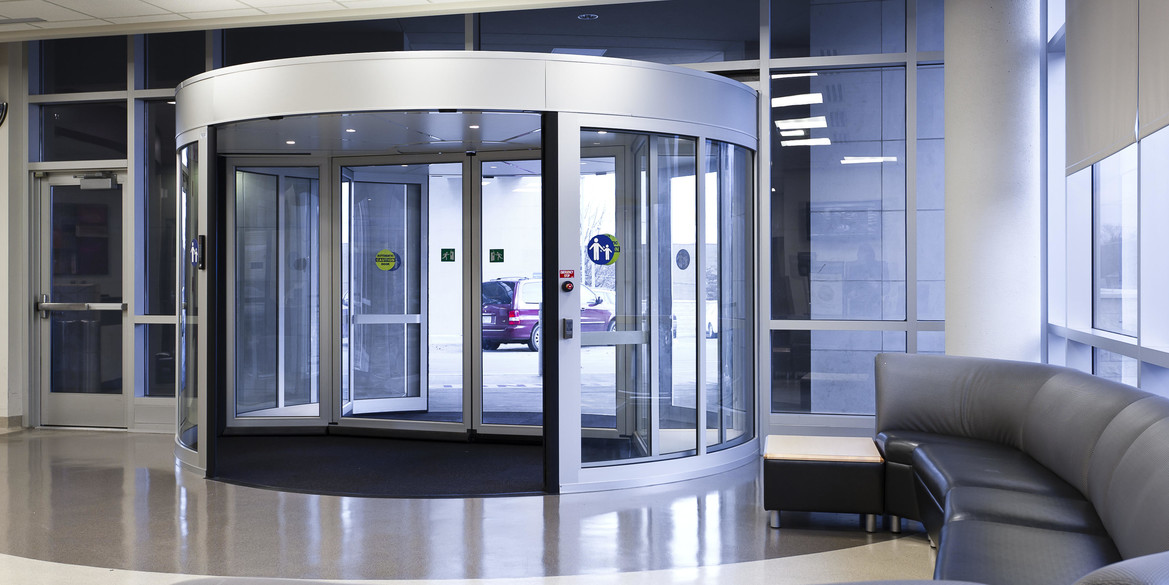

The high-capacity revolving door ASSA ABLOY UniTurn creates an inviting and spacious entrance by utilizing a perimeter drive that eliminates the need for a bulky center shaft. This creates a larger door compartment area capable of accommodating shopping and luggage carts, wheelchairs and large numbers of users with ease. The ASSA ABLOY UniTurn provides excellent separation of the interior and exterior environments, reducing heating and/or cooling losses. It also features two enclosed display cases within the rotating door leaves that can be used for informational promotions or advertising.
The ASSA ABLOY UniTurn is designed for placement directly on the finished floor surface with no special foundations required. Optionally, it can be fitted with a key-activated centre sliding door that allows it to be used as a fully automated sliding door entrance for additional ventilation and greater access to the building.
Safety compliance
The ASSA ABLOY UniTurn is fully compliant with EN 16005 safety standard.
Technical Description
ASSA ABLOY UniTurn
- Power supply: 100-240 V, 50 Hz,mains fuse max 10 A
- Power consumption: 400 W /30 W resting
- Anodizing, clear or bronze
- Lighting LED: 70 W
- Internal height non-standard (max. 2600 mm)
- Fascia height non-standard (max. 1250 mm)
- Powder-coated finish (RAL colours)
- Stainless steel cladding
BIM Object
Environmental Declaration
Drawings
