ASSA ABLOY SW200I
ASSA ABLOY SW200I
The ASSA ABLOY SW200I is an intelligent, heavy duty, electromechanical swing door operator with an amazing capability to handle heavy doors.
Brand
Besam
Besam was acquired by ASSA ABLOY in 2002 and is now a product brand of ASSA ABLOY Entrance Systems.
View brandASSA ABLOY SW200I universal swing door operator

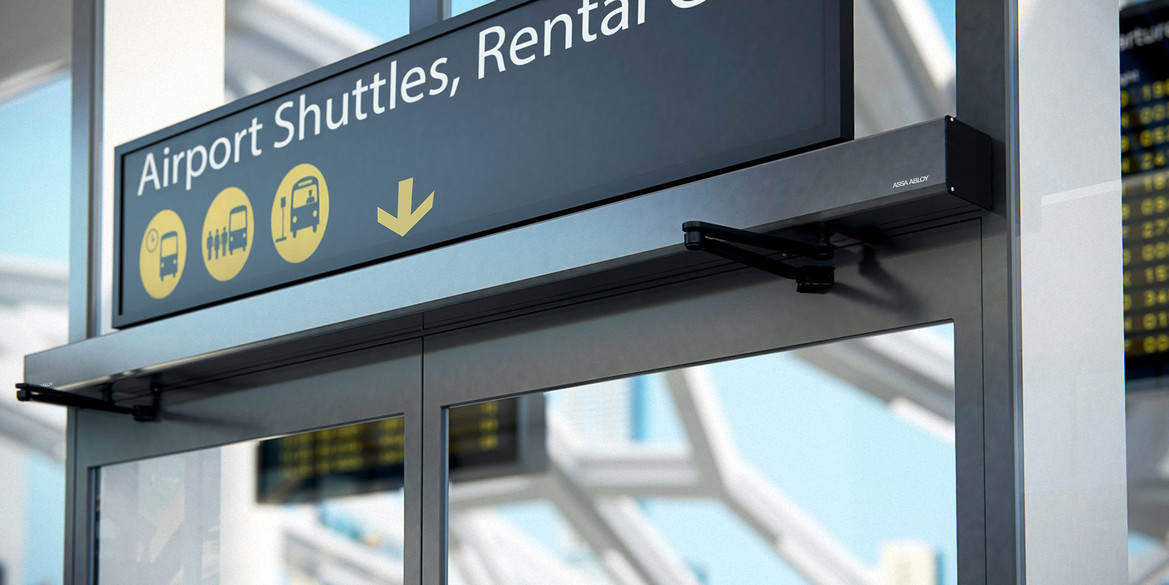

The ASSA ABLOY SW200I is an intelligent, heavy duty, electromechanical swing door operator with an amazing capability to handle heavy doors. It is the ideal choice for applications with high demands on gentle and smooth operation in combination with strength and high traffic flow. It compensates for stack pressure and wind load yet it remains easy to open manually.
ASSA ABLOY SW200I offers a unique 180 degree opening angle in both push and pull applications, and additionally it has an easy-to-use manual push force in power-off.
An optional embedded battery back-up and monitoring ensures operation even when the power is interrupted, while an intelligent locking function adds security.
ASSA ABLOY SW200I is suitable for applications such as: low energy and heavy duty, interior and exterior entrances, single and double leaf doors, fire doors (depending on national regulations), escape routes and push and pull applications.
Safety compliance
The ASSA ABLOY SW200I complies with EN 1634-1, EN 16005, UL 325 and ANSI/BHMA A156.10, A156.19.
Technical Description
ASSA ABLOY SW200I
- Power supply: 100-240 V AC, +10/-15%, 50/60Hz, mains fuse max. 10A (building installation)
- Power consumption max. 300 W
- Auxiliary voltage: 24 V DC, max. 700 mA
- Monitored battery backup unit: 24 V DC
- Electromechanical locking connection: 12 V DC max. 1200 mA or 24 V DC max. 600 mA
- Ambient temperature: -20°C to +45°C
- Recommended max. door weight and door width:
Inertia J = door weight x (door width)²/3
Push J=160kgm²
Pull J=80kgm²
Concealed J=80kgm² - Relative humidity (non condensing):95%
- Class of protection:IP20
BIM Object
ASSA ABLOY SW200 I
ASSA ABLOY SW200i-1 PULL
ASSA ABLOY SW200i-1 PUSH
ASSA ABLOY SW200i-2 PULL
ASSA ABLOY SW200i-2 PUSH
ASSA ABLOY SW200i-2 PUSH PULL
ASSA ABLOY SW200i-1 Door mounted
ASSA ABLOY SW200i-2 Door mounted
ASSA ABLOY SW200i-1 Sliding PUSH
ASSA ABLOY SW200i-2 Sliding PUSH
ASSA ABLOY SW200i-1 PAS
Environmental Declaration
