Integrated Swing Door Systems

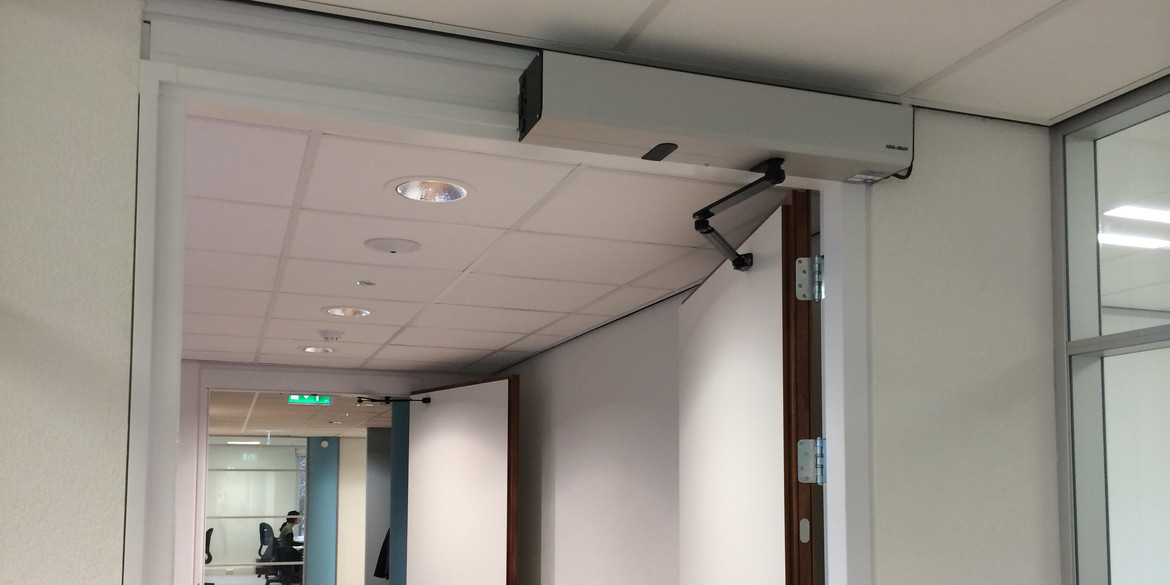

ASSA ABLOY SW200 operator

ASSA ABLOY SW200I has a built-in anti-finger trap protection

ASSA ABLOY SW200I  is great for crowded entrances

Providing safe entrances with unique features.

Brand
Besam

Besam was acquired by ASSA ABLOY in 2002 and is now a product brand of ASSA ABLOY Entrance Systems.

View brand

The ASSA ABLOY SW200I swing door system is designed for entrances where aesthetics, superior safety and sustainability are important. With no visible arm and an integrated operator, this door system is unique on the market and makes a perfect fit to entrances in harsh environments like schools and transport hubs. With no visible operator, this door system doesn’t require any extra cleaning on top of the operator and arm.

It is built to withstand stack pressure and a high wind load and comes with an optional battery back-up, making sure that the door performs in any weather or power outage.

Available in both single and double arrangements and ready for easy cable routing, the ASSA ABLOY SW200I can easily be integrated into your building.

Safety features

Meeting all EU regulations, the ASSA ABLOY SW200I is ready to be used by any pedestrian, regardless of age and physical ability. A round back edge provides built-in anti-finger trap protection and along with intelligent locking features ensures that your entrance is safe and protected against accidents and unwanted guests. Combine your revolving door entrance with the ASSA ABLOY SW200I for a safe and reliable handicap access to your building.

Sustainable

All ASSA ABLOY automatic doors prioritize sustainability, making sure that they only open and close when someone needs to pass through, ensuring minimal energy consumption. The ASSA ABLOY SW200I also has specially designed brushes to minimize unnecessary air infiltration, making it even more sustainable.

Safety compliance

The ASSA ABLOY SW200I swing door system fully complies with EN 16005 safety standard.

Technical Description

ASSA ABLOY SW200I

  • Power supply: 100-240 V AC, +10/-15%, 50/60Hz, mains fuse max. 10A (building installation)
  • Power consumption max. 300 W
  • Auxiliary voltage: 24 V DC, max. 700 mA
  • Monitored battery backup unit: 24 V DC
  • Electromechanical locking connection: 12 V DC max. 1200 mA or 24 V DC max. 600 mA
  • Ambient temperature: -20°C to +45°C
  • Recommended max. door weight and door width:
    Inertia J = door weight x (door width)²/3
    Push J=160kgm²
    Pull J=80kgm²
    Concealed J=80kgm²
  • Relative humidity (non condensing):95%
  • Class of protection:IP20

Brochure

SW Range.pdf  (3.83MB)
