Safety, reliability and durability for interior areas.
Brand
Albany
In 2012, Albany was acquired by ASSA ABLOY Group and is now a product brand of ASSA ABLOY Entrance Systems.
View brandASSA ABLOY RapidRoll interior doors assure the safety, reliability and durability needs of customers which arise inside of buildings. Current technologies now allow the combination of fast and smart doors for vehicle traffic regulation with special pedestrian-safe designs. The conscious separation of areas inside of buildings allows for area climate-control while automation helps to prevent the spread of germs or fumes throughout a factory. Interior doors range from simple economical building doors to specially designed doors for separating cleanrooms, food production, automated or robotic production areas.

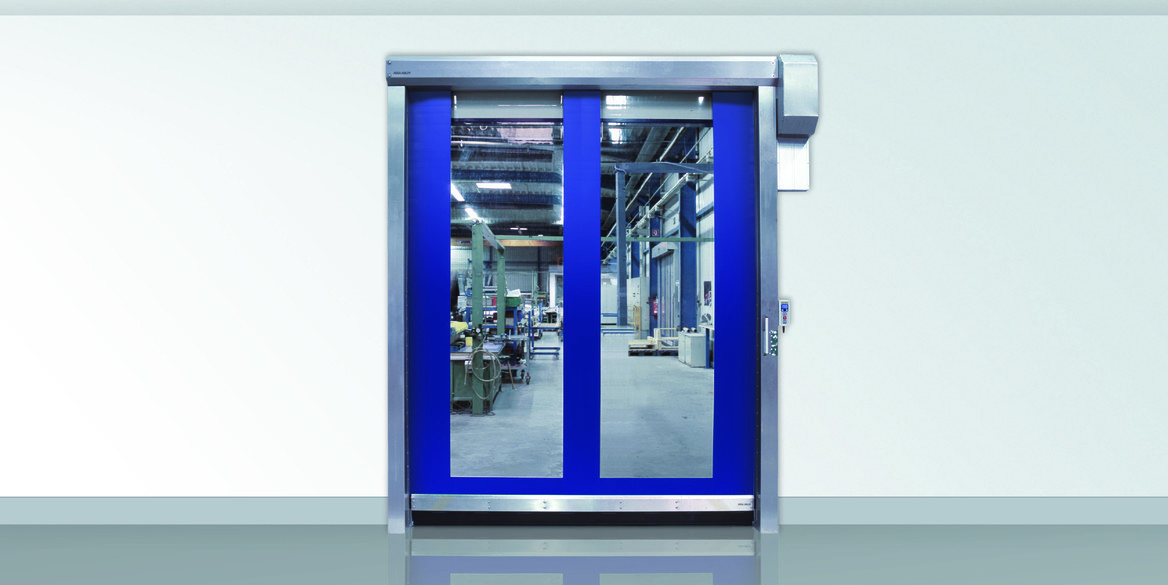

ASSA ABLOY RR100
The ASSA ABLOY RR100 is an economic fabric interior door for all kinds of general purposes in interior room separation in general manufacturing or logistic facilities. Its simple design makes it almost maintenance free. With simple and compact design, the side frames just occupy less space and this is meaningful especially for the door openings with restricted lateral spaces.

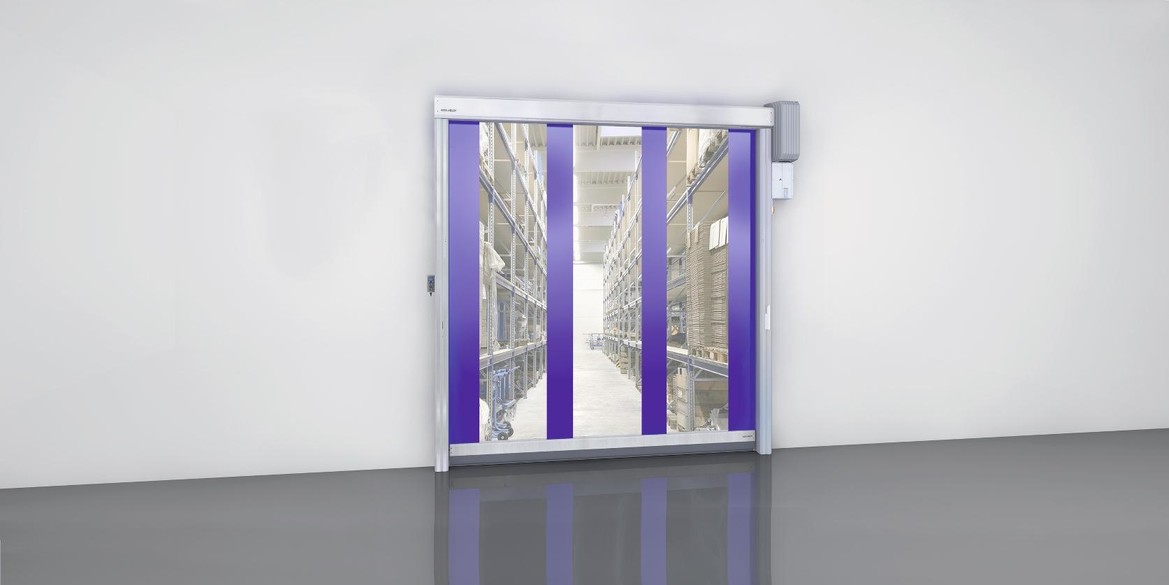

ASSA ABLOY RR300 Plus
ASSA ABLOY RR300 Plus, provided with side frames and covers made of aluminium, is not only perfectly suited to distribution, retail and wholesale trade business, warehouses are also happy to use it as the ASSA ABLOY RR300 Plus can provide energy-saving room and climate separation. Smooth, easy cleanable surfaces make it ideal for use in the hygiene sector, too. Its egress function allows the door to be opened automatically in the event of a power failure by means of the integrated counterbalance system. The curtain is made of RollTex® fabric for applications needing a more durable curtain material, while clear transparency material with a range of coloured reinforced stripes is also available.
Technical Description
ASSA ABLOY RR100
- Interior door suitable
- Door dimension max. 5000× 5000 mm
- Speed open/close: up to max. 1.4/0.8 m/s depending on specific door sizes
- Side frames and bottom profile are made of aluminium with surface treatment of anodization
- Door curtain is made of polyester fabric with two-sided colored coating, blue (RAL5002), yellow (RAL1003), or orange (RAL2004) can be requested. Full width vision panel is available for option
- The operational stabilisation can be enhanced by aluminium wind ribs
- Door line photocell is standard and contact safety edge is optional
- Frequency-converter-based control system with non-volatile memory for door position parameters, 3 programmable potential-free outputs, integrated cycles counter as well as access code to prevent unauthorised access
More information regarding specifications please refer to sales engineers from ASSA ABLOY Entrance Systems
ASSA ABLOY RR300 Plus
- Compact, light-weight high seed door for internal use
- Counter-balanced design
- In protected exterior applications
- Wind resistance (EN 12424) class 1
- Door dimension max. 5000 × 5000 mm
- According to the operation conditions and applications different control units are available
- Speed open/close: 2.2/0.9 m/s, depending on control units and specific door sizes
- Door Design: side frame, top roll cover and bottom profile is made from Aluminium
- Door curtain: Different options of door curtains are available. Clear PVC material with coloured reinforcement stripes or more durable curtain material with windows or vision panels
- Electrical safety contact edge and door line photocell as standard
- Manual egress by pulling down the lever to open the door quickly in case of power failure
- The door is designed according to the Workplace Directive of the UVV regulations and the harmonized CE Guidelines including the EN 13241-1.
More information regarding specifications please refer to sales engineers from ASSA ABLOY Entrance Systems
